Home  >  Comfort-Aire  >  Geothermal/Residential  >  Water-to-Water  >  MWM  > WSHP 36K WATER-WATER GEOTHERM

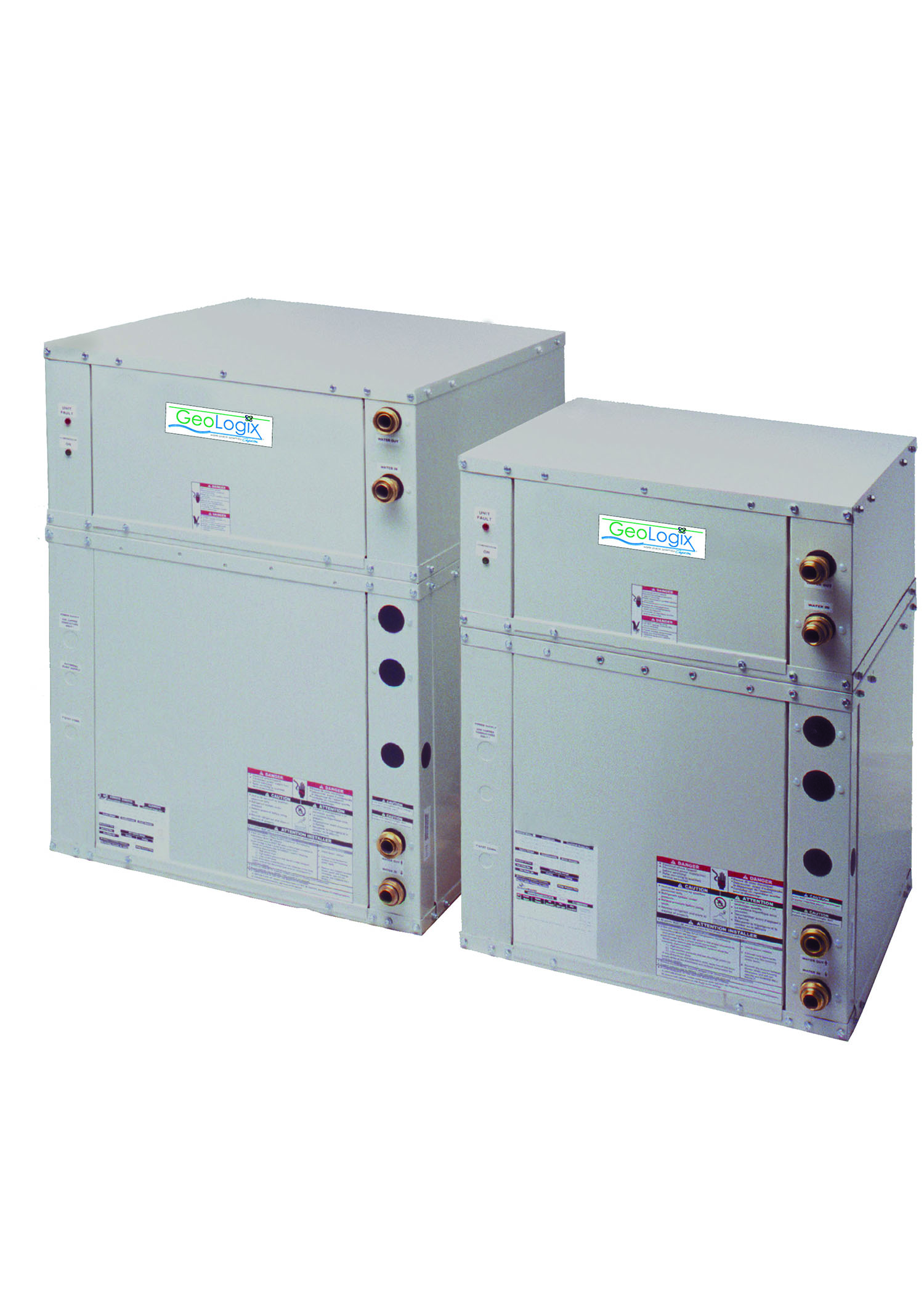

WSHP 36K WATER-WATER GEOTHERM

208/230-3-60
Configuration Vertical; multiples can be installed side x side Capacity (Tons) 3 EER 14.5 Voltage 208/230V-3-60 Compressor Scroll (1) COP 4.8 Fuse Amps 15 Application Residential/Commercial Coaxial Coil Brazed Plate Width (in.) 25.4 Water Loop Cooling BTUH 30700 Ground Water Cooling BTUH 33300 Water Loop Heating BTUH 43000 Warranty See Warranty Document Ground Water Heating BTUH 34900 Depth (in.) 27.5 Controller DXM FLA 8.6 Min. Circuit Ampacity 10.8 Hot Water Generator No Special Order Options Contact Customer Service 877-442-4482 Extended Range Operation Yes Shipping Wt (lbs) 212 Height (in.) 27 Test Listing ETL US and Canada Certification AHRI Ground Loop Cooling BTUH 31800 Refrigerant Charge (oz.) 42 Ground Loop Heating BTUH 27500
Item #: MWM036AHD00000S
MWM Series Water-Water

Water-to-Water Geothermal Heat Pumps have a wide range of HVAC and Industrial Applications, Radiant Floors, Snow/Ice Melting, Chilled Water for Fan Coils, Potable Hot Water, Others Requiring Cost-Effective Heated or Chilled Water, Microprocessor Controls, Quiet

Water-to-Water

Configuration
Vertical; multiples can be installed side x side
Capacity (Tons)
3
EER
14.5
Voltage
208/230V-3-60
Compressor
Scroll (1)
COP
4.8
Fuse Amps
15
Application
Residential/Commercial
Coaxial Coil
Brazed Plate
Width (in.)
25.4
Water Loop Cooling BTUH
30700
Ground Water Cooling BTUH
33300
Water Loop Heating BTUH
43000
Warranty
See Warranty Document
Ground Water Heating BTUH
34900
Depth (in.)
27.5
Controller
DXM
FLA
8.6
Min. Circuit Ampacity
10.8
Hot Water Generator
No
Special Order Options
Contact Customer Service 877-442-4482
Extended Range Operation
Yes
Shipping Wt (lbs)
212
Height (in.)
27
Test Listing
ETL US and Canada
Certification
AHRI
Ground Loop Cooling BTUH
31800
Refrigerant Charge (oz.)
42
Ground Loop Heating BTUH
27500
